PRISTINE SERIES

PRISTINE SERIES - OUTDOOR WOOD FURNACES

Crown Royal Stoves Pristine Series models use the newest technology called gasification. Gasification furnaces are designed to achieve the highest efficiency ratings possible with extremely low emissions. The Crown Royal Stoves Pristine Series outdoor wood boilers are designed to burn dried wood and are able to be installed in areas with the strictest emission laws.

7200E

Est Weight (lbs)
1752
Width
47"
Length
66"
Height
73"
Firebox Length
28"
Chimney Size
6"
Door Size
18"x18"
Supply Size
1 1-1/4"
Return Size
1 1-1/4"
Approx. Water Capacity
190 gal.
Fan Capacity
150 cfm
Approx. Sq. Ft.
2,000 - 3,000
Approx. BTU's
125,000
Insulation Walls
R 30
Insulation Roof
R 30
 409 Stainless Steel
Yes

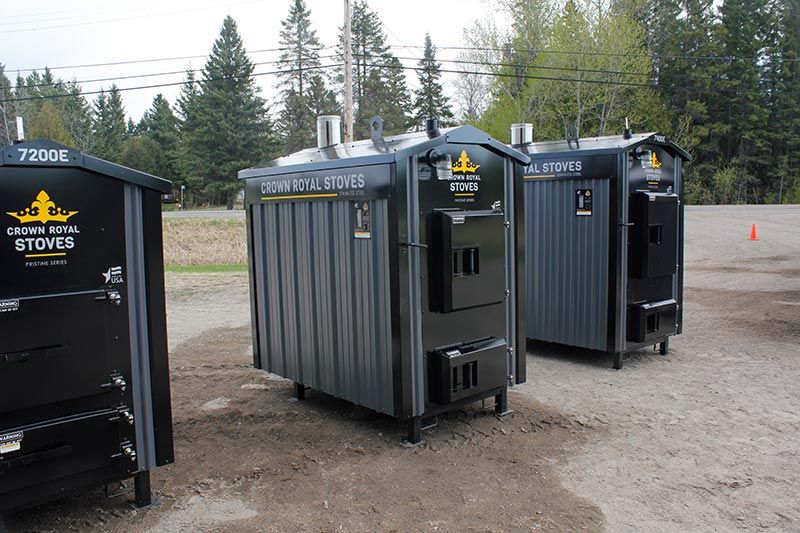

7300E

Est Weight (lbs)
2500
Width
51"
Length
80"
Height
92"
Firebox Length
32"
Chimney Size
6"
Door Size
20"x20"
Supply Size
2 1-1/4"
Return Size
2 1-1/4"
Approx. Water Capacity
290 gal.
Fan Capacity
150 cfm
Approx. Sq. Ft.
4,000 - 5,000
Approx. BTU's
225,000
Insulation Walls
R 30
Insulation Roof
R 30
 409 Stainless Steel
Yes

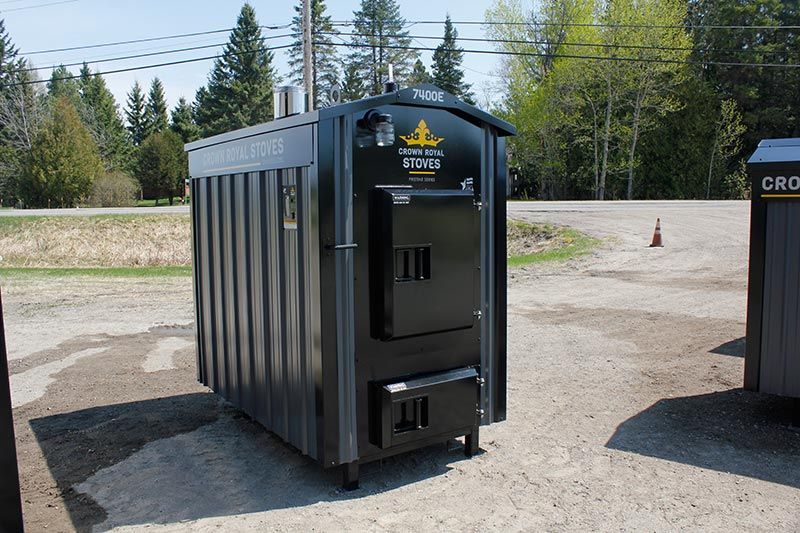

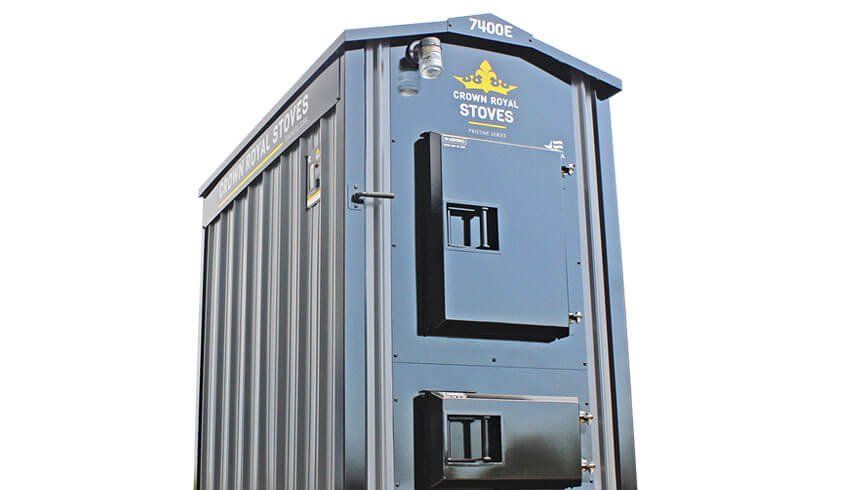

7400E

Est Weight (lbs)
3200
Width
54"
Length
89"
Height
102"
Firebox Length
34"
Chimney Size
6"
Door Size
22"x26"
Supply Size
2 1-1/4"
Return Size
2 1-1/4"
Approx. Water Capacity
400 gal.
Fan Capacity
150 cfm
Approx. Sq. Ft.
7,000 - 8,000
Approx. BTU's
300,000
Insulation Walls
R 30
Insulation Roof
R 30
 409 Stainless Steel
Yes

INCLUDED ACCESSORIES:

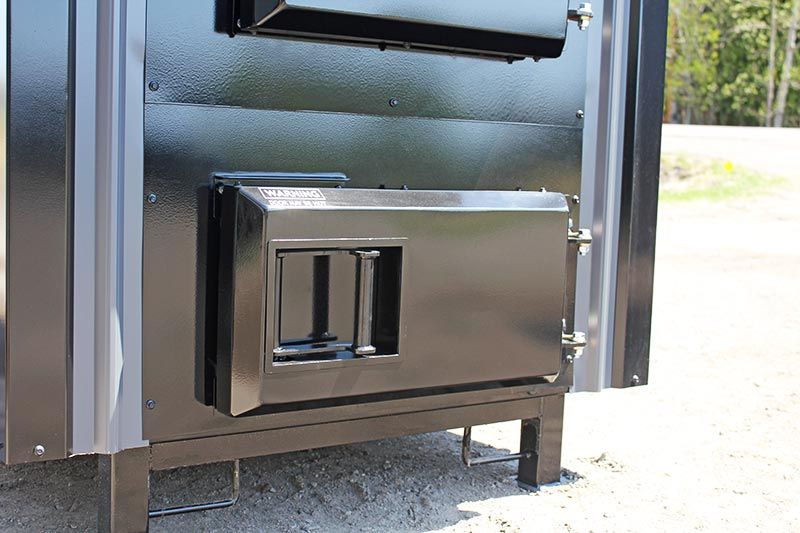

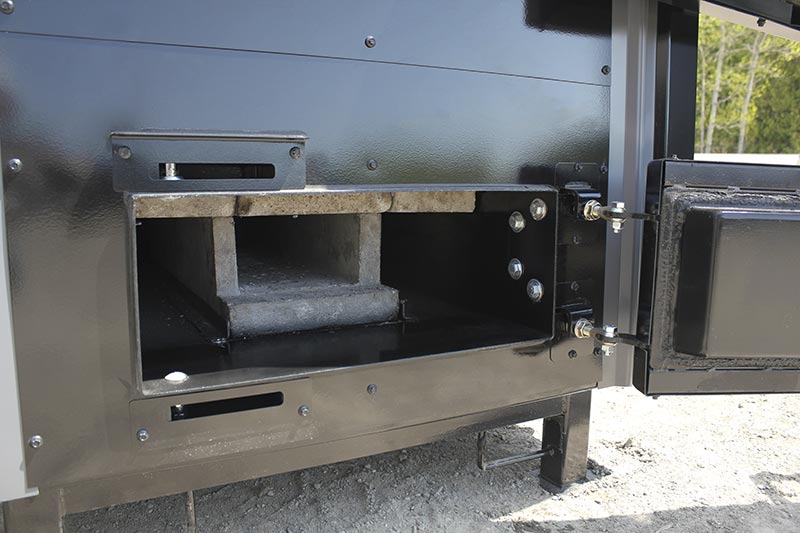

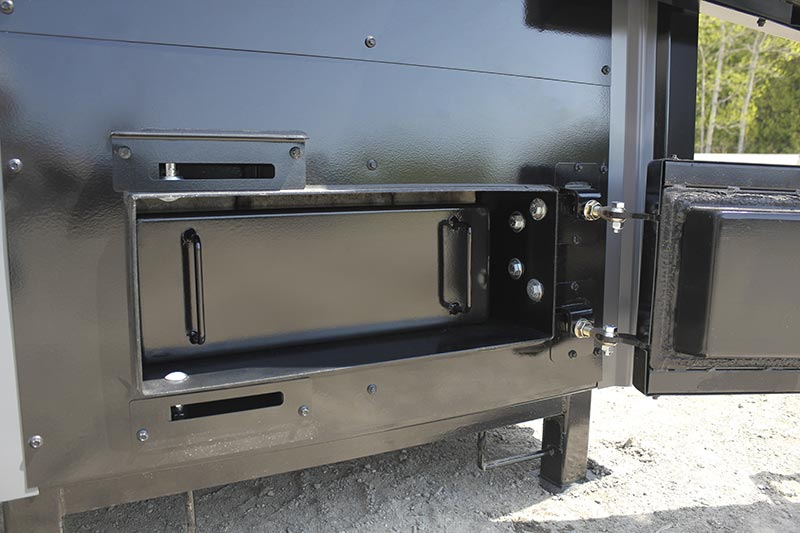

Ash Rake: Easily clean the fly ash in the secondary combustion chamber.
Air Tube Cleaning Whip: Equipped with drill adapter, this 5' flexible road will ensure your furnace is clean and running at peak performance.
Water Level Indicator: Reliable mean of maintaining an accurate level of water in your furnace at all times.

ADVANTAGES

  • Less wood consumption, saving you more money.
  • Improved, smoke free combustion for a clean burn.
  • Thermal & energy efficiency with fewer emissions providing environmentally responsible heat.
  • Reliable design, giving you convenient, time saving feature including easy maintenance & extended burn times.
  • Refires automatically, when needed, to maximize & control energy use and heat delivery.
  • Reduce your carbon footprint by using a renewable heat source and become carbon neutral.

FEATURES

  • 409 Titanium Enhanced Stainless Steel
  • Gasification Process

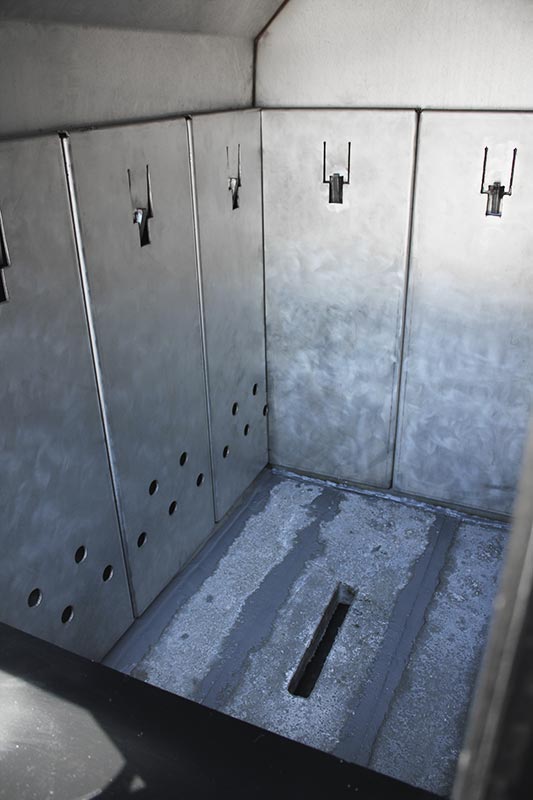

  • Firebrick Refractory

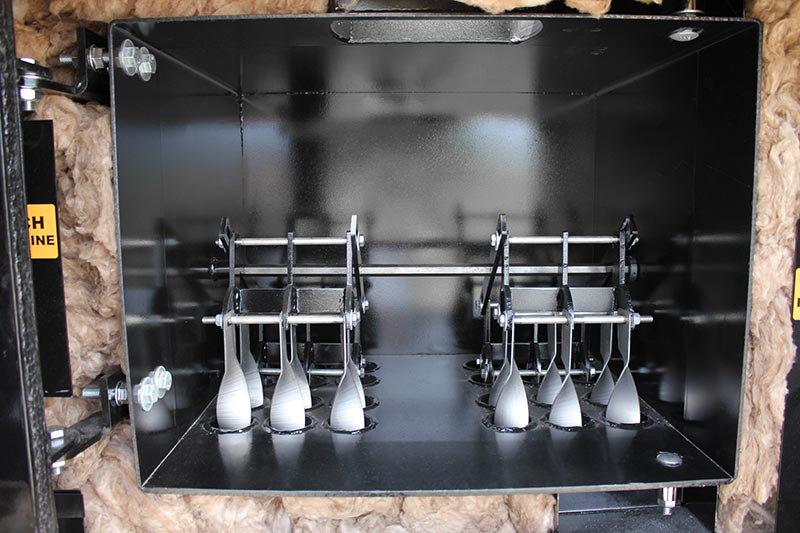

  • Stainless Steel Heat Transfer Tubes

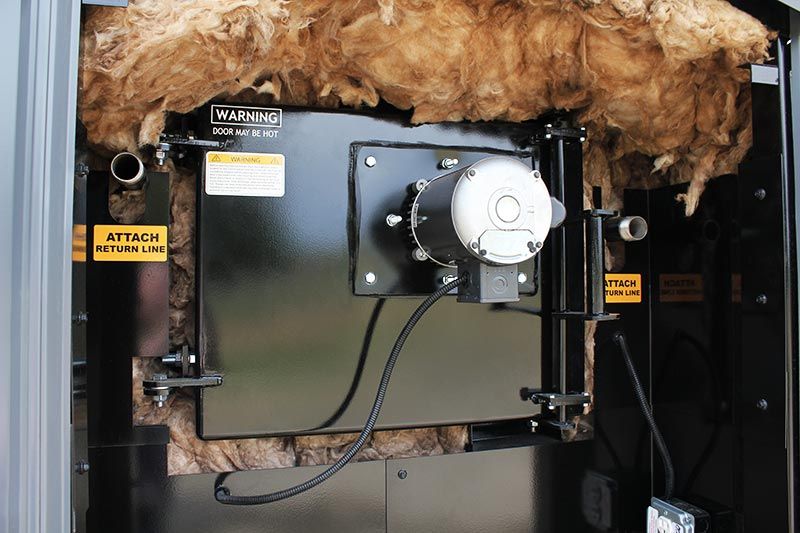

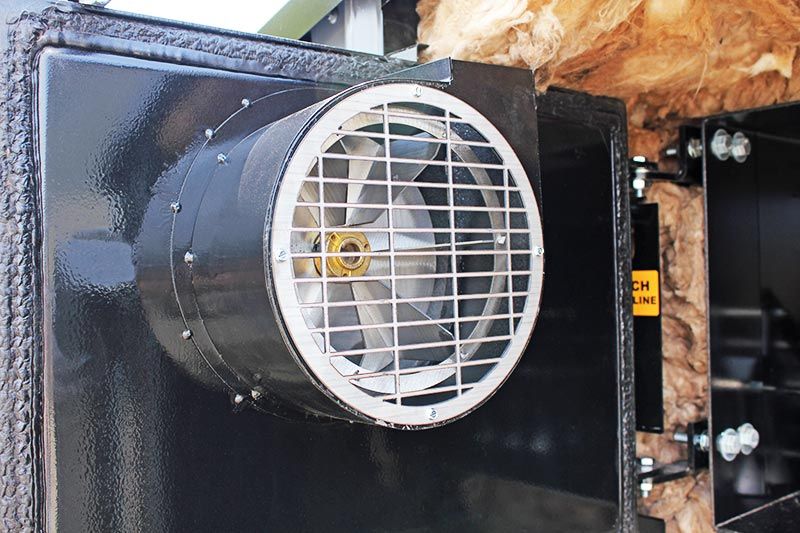

  • Fan Forced Draft
  • Class A Insulated Chimney
  • Non-Stick Door Gasket
  • Insulated - Walls R30, Roof R30
  • Water Level Indicator

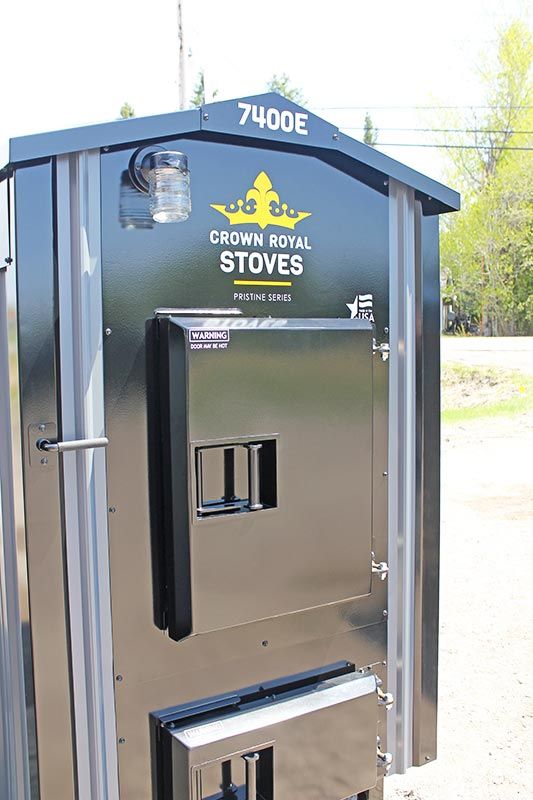

  • Safety Latch Firebox Door
  • Digital Control Panel
  • 20 Year Limited Warranty

BENEFITS

  • No Mess in the House
  • Works with Any Existing System
  • No Carbon Monoxide Caused by Gas Fumes
  • Large Firebox & Loading Door
  • Cost Effective Heat Source
  • Multiple 1-1/4" Supply & Return Connections

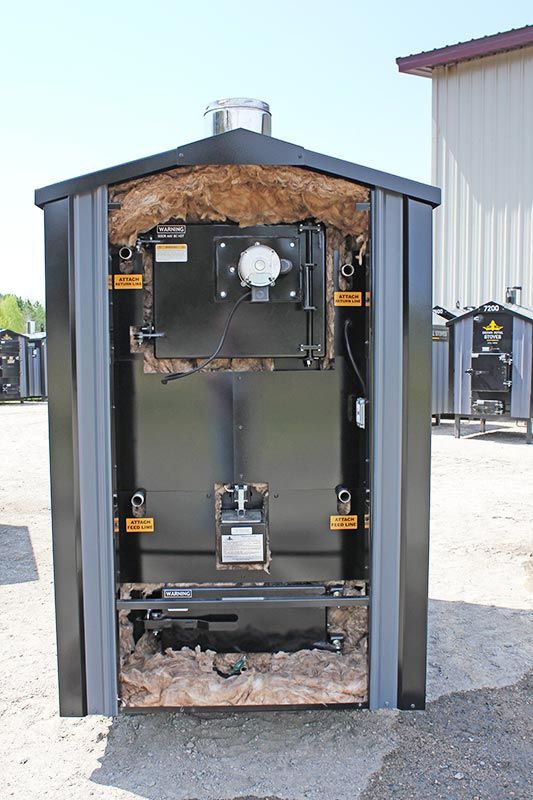

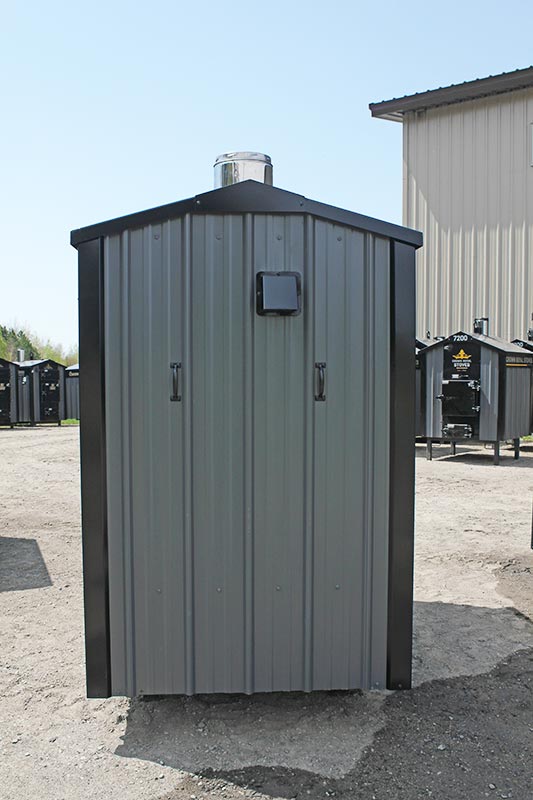

  • Easily Removable Rear Access Door to Plumbing Connections
  • Light for Night Loading

APPLICATIONS

  • Residential Homes
  • Pools/Hot Tubs
  • Domestic Hot Water
  • Radiant In-Floor Heating
  • Commercial Buildings
  • Greenhouses
  • Garages & Workshops
  • Barns & Agricultural Buildings
