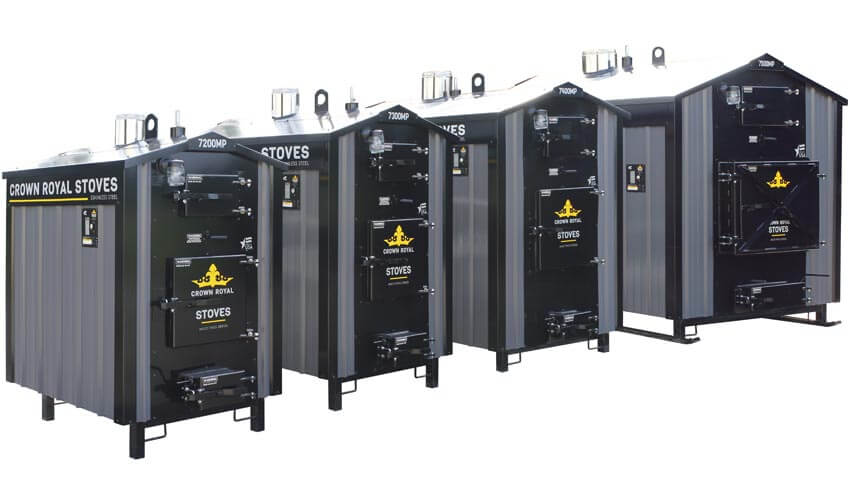

MULTI PASS SERIES

MULTI PASS SERIES - OUTDOOR FURNACES

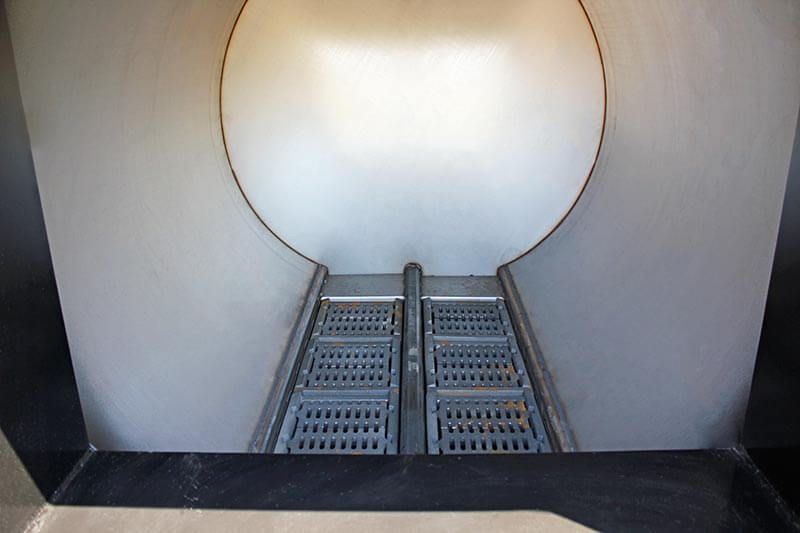

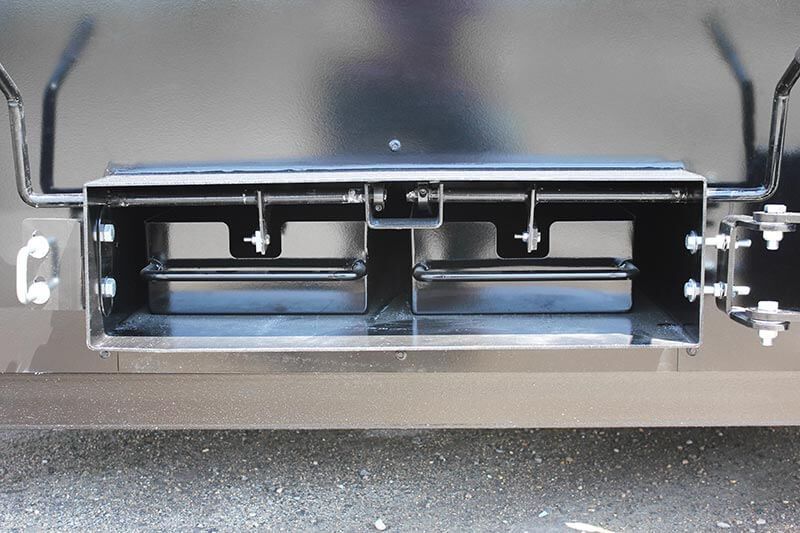

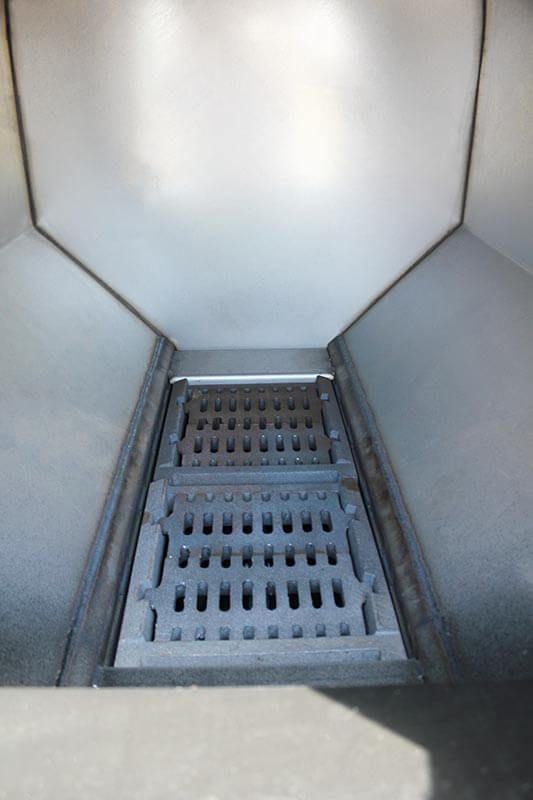

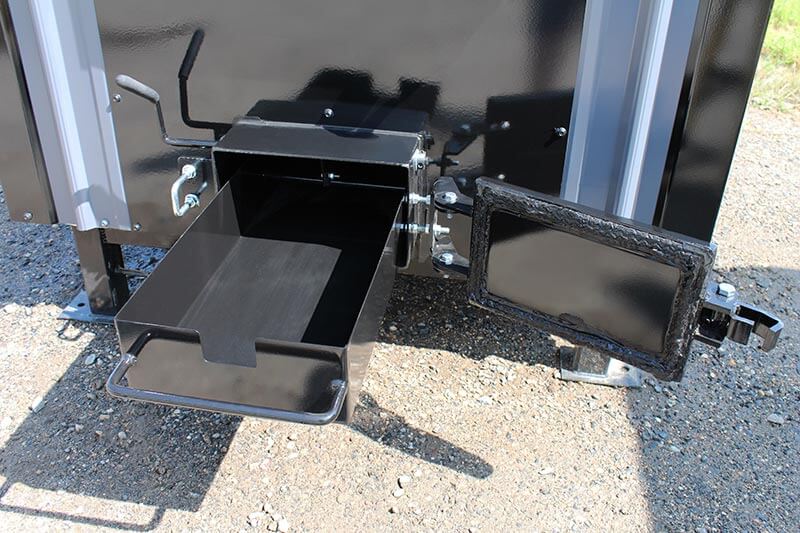

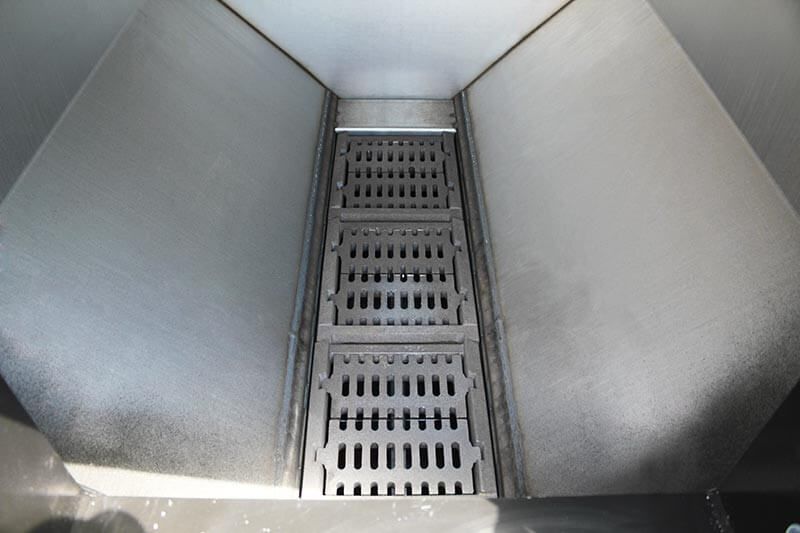

Crown Royal Outdoor Stoves provide an inexpensive, economical way to heat your home using renewable resources. Type 409 Titanium Enhanced Stainless Steel, made 100% in USA mills, is used for the construction of the stoves to provide the best corrosion resistance and heat transfer possible. Designed for convenience, the Crown Royal Stove can be located next to your fuel storage. Cleaning is quick and easy with the shaker grate and ash pan design.

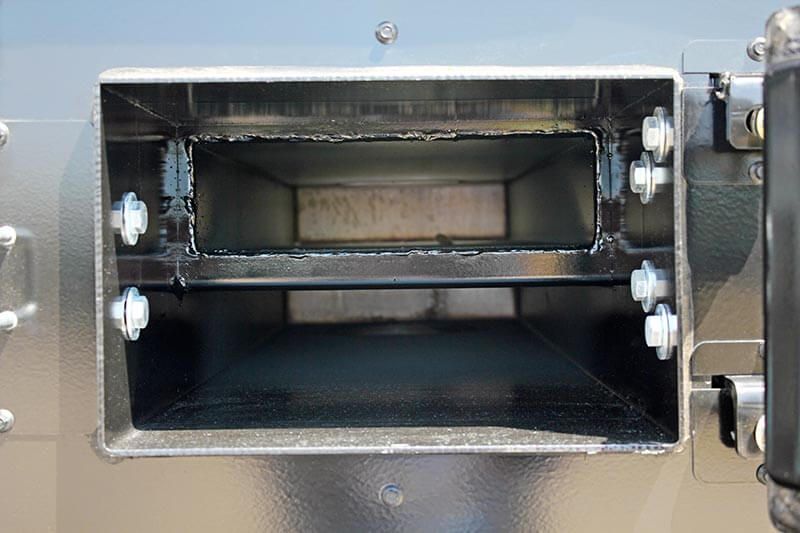

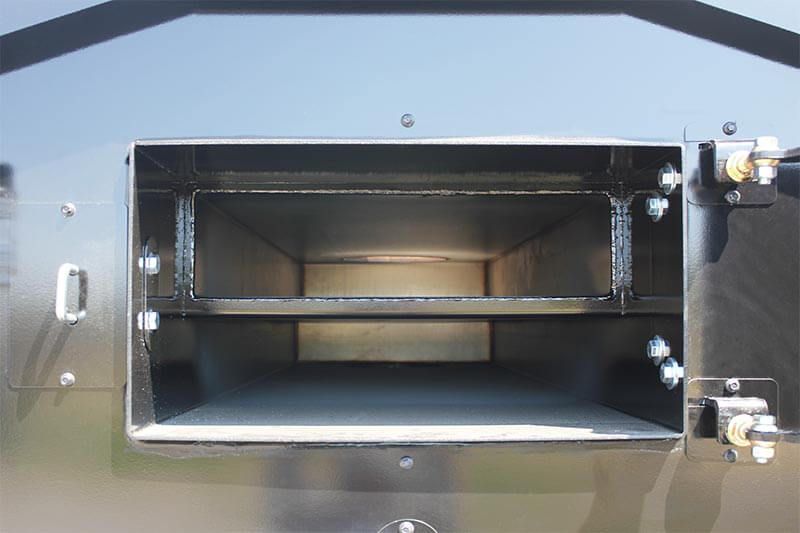

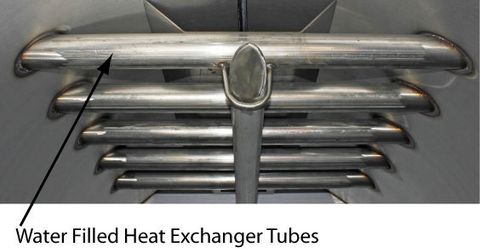

The Multi Pass Series was designed to produce the highest efficiencies possible. This stove has been manufactured with a triple pass heat exchanger and stainless steel heat exchanger tubes. It is also equipped with a turbo draft fan that produces secondary combustion. The Multi Pass are available in two models, ranging from 6,000 square feet to 10,000 square feet.

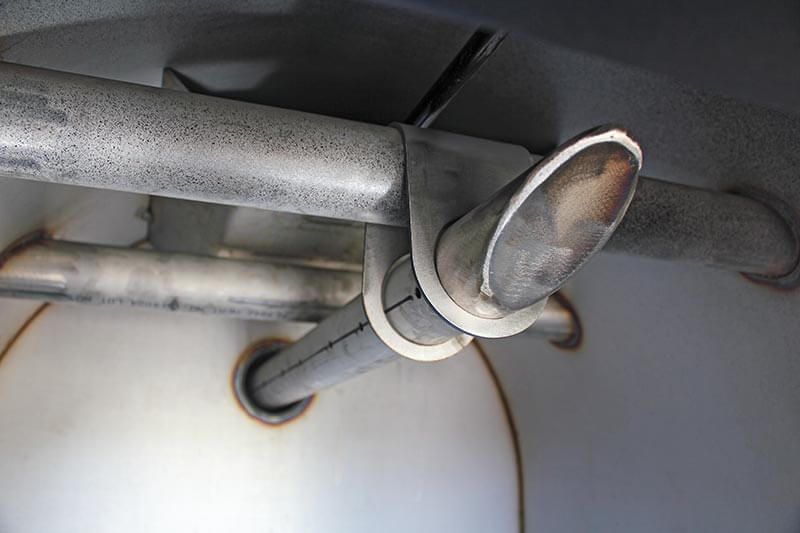

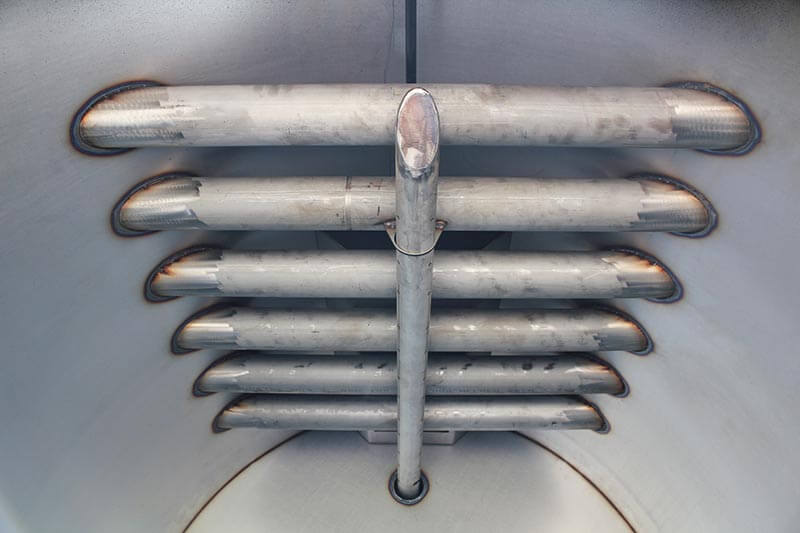

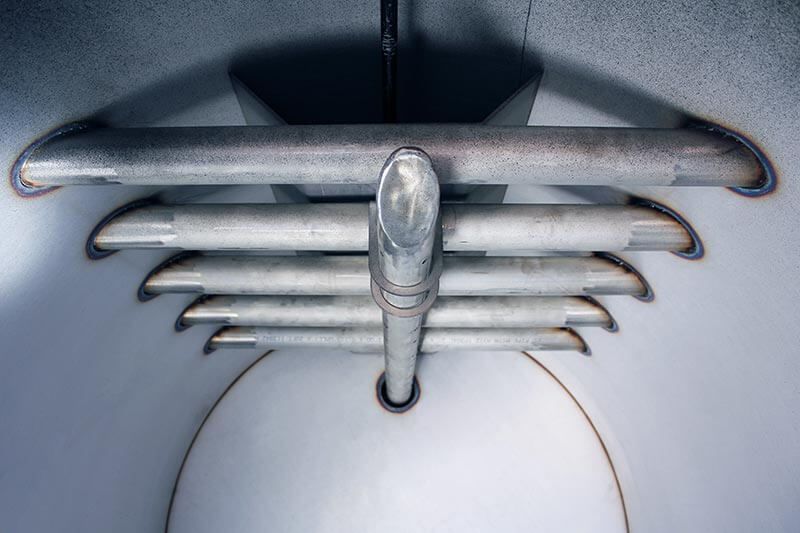

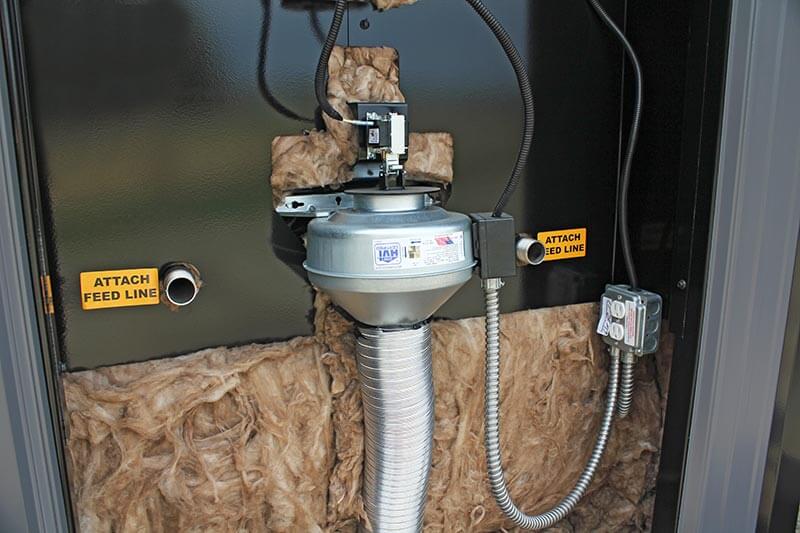

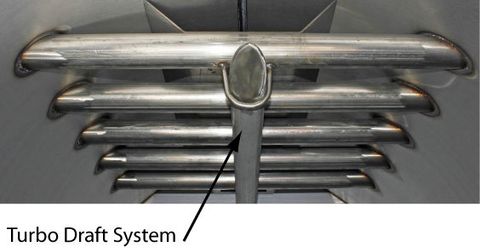

TURBO DRAFT SYSTEM

The Turbo Draft System allows for a cleaner, more efficient burn inside the firebox. With this system, secondary gases are burned before escaping out of the chimney. Watch the video below to see how it works.

7200MP

Est Weight (lbs)
1400
Width
47 1/2"
Length
62"
Height
81"
Firebox Length
30"
Chimney Size
6"
Door Size
20"x20"
Supply Size
1 1-1/4"
Return Size
1 1-1/4"
Approx. Water Capacity
140 gal.
Fan Capacity
150 cfm
Turbo Fan
60 CFM
Approx. Sq. Ft.
2,000 - 3,000
Approx. BTU's
165,000
Insulation Walls
R 30
Insulation Roof
R 30
 409 Stainless Steel
Yes

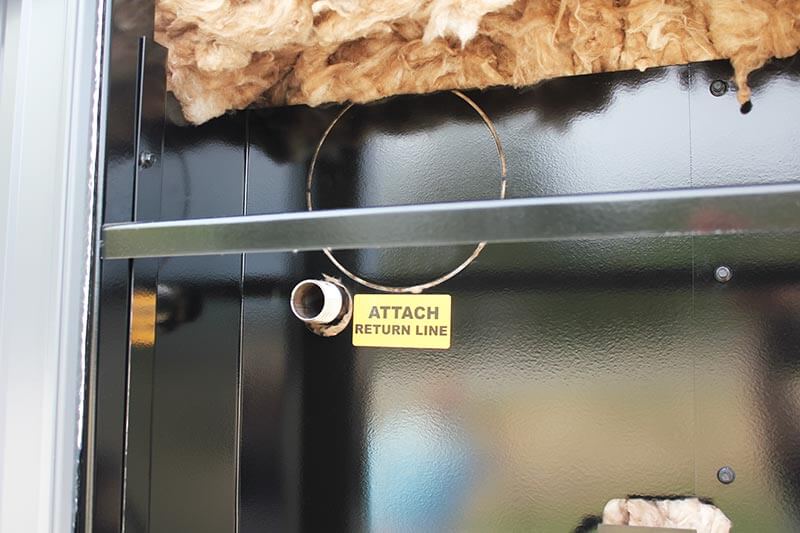

Domestic Coil 300,000 BTU
Optional

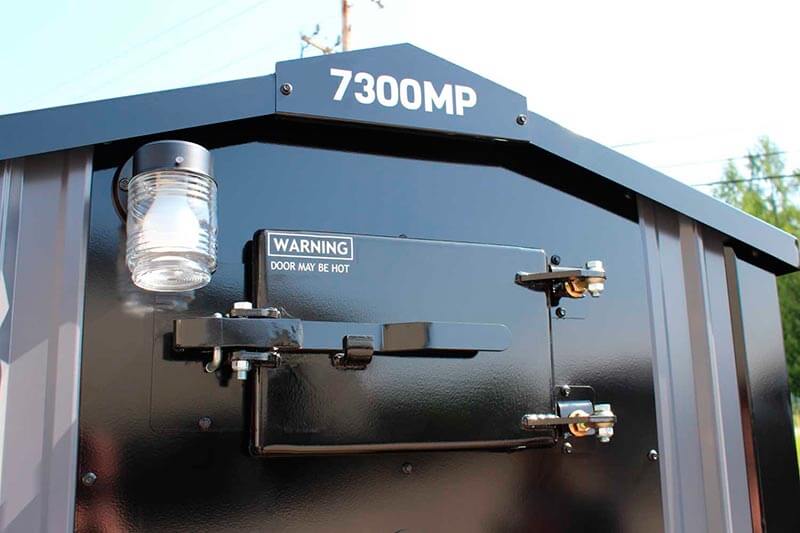

7300MP

Est Weight (lbs)
1800
Width
52"
Length
68"
Height
87"
Firebox Length
38"
Chimney Size
6"
Door Size
20"x20"
Supply Size
2 1-1/4"
Return Size
2 1-1/4"
Approx. Water Capacity
150 gal.
Fan Capacity
150 cfm
Turbo Fan
60 CFM
Approx. Sq. Ft.
4,000 - 7,000
Approx. BTU's
275,000
Insulation Walls
R 30
Insulation Roof
R 30
 409 Stainless Steel
Yes
Domestic Coil 300,000 BTU
Optional

7400MP

Est Weight (lbs)
2500
Width
60"
Length
72"
Height
97"
Firebox Length
48"
Chimney Size
8"
Door Size
24"x24"
Supply Size
2 1-1/4"
Return Size
2 1-1/4"
Approx. Water Capacity
320 gal.
Fan Capacity
150 cfm
Turbo Fan
60 CFM
Approx. Sq. Ft.
8,000 - 10,000
Approx. BTU's
400,000
Insulation Walls
R 30
Insulation Roof
R 30
 409 Stainless Steel
Yes
Domestic Coil 300,000 BTU
Optional

7500MP

Est Weight (lbs)
5000
Width
89"
Length
99"
Height
110"
Firebox Length
60"
Chimney Size
10"
Door Size
42"x32"
Supply Size
2 1-1/4"
Return Size
2 1-1/4"
Approx. Water Capacity
600 gal.
Fan Capacity
150 cfm
Turbo Fan
60 CFM
Approx. Sq. Ft.
18,000 - 20,000
Approx. BTU's
750,000
Insulation Walls
R 30
Insulation Roof
R 30
 409 Stainless Steel
Yes
Domestic Coil 300,000 BTU
Optional

ADVANTAGES

  • Less wood consumption, saving you more money.
  • Improved, smoke free combustion for a clean burn.
  • Thermal & energy efficiency with fewer emissions providing environmentally responsible heat.
  • Reliable design, giving you convenient, time saving feature including easy maintenance & extended burn times.
  • Refires automatically, when needed, to maximize & control energy use and heat delivery.
  • Reduce your carbon footprint by using a renewable heat source and become carbon neutral.

FEATURES

  • 409 Titanium Enhanced Stainless Steel
  • Gasification Process
  • Firebrick Refractory
  • Stainless Steel Heat Transfer Tubes

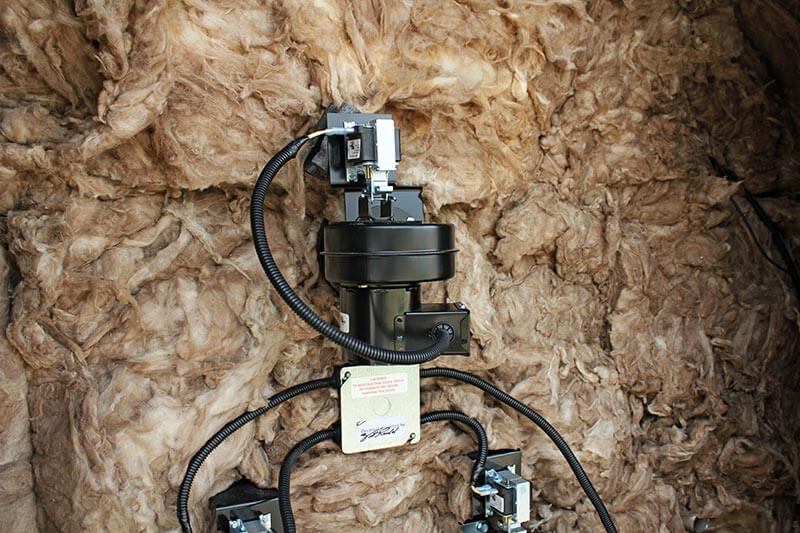

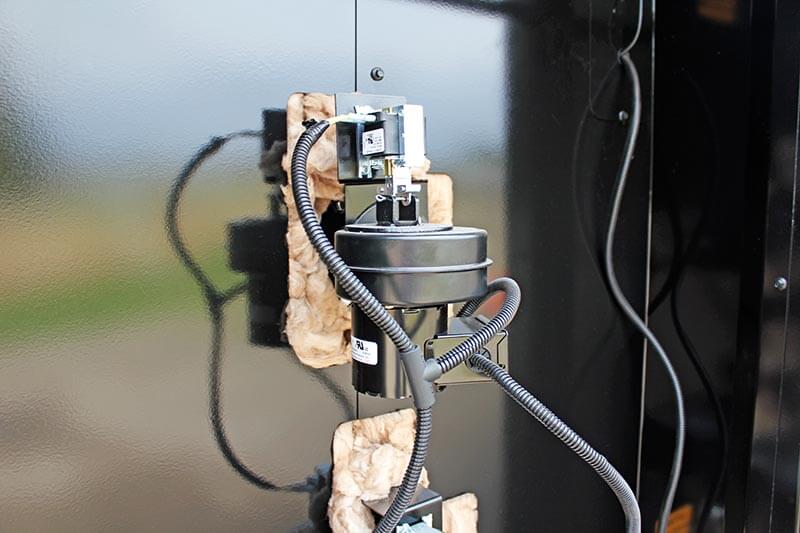

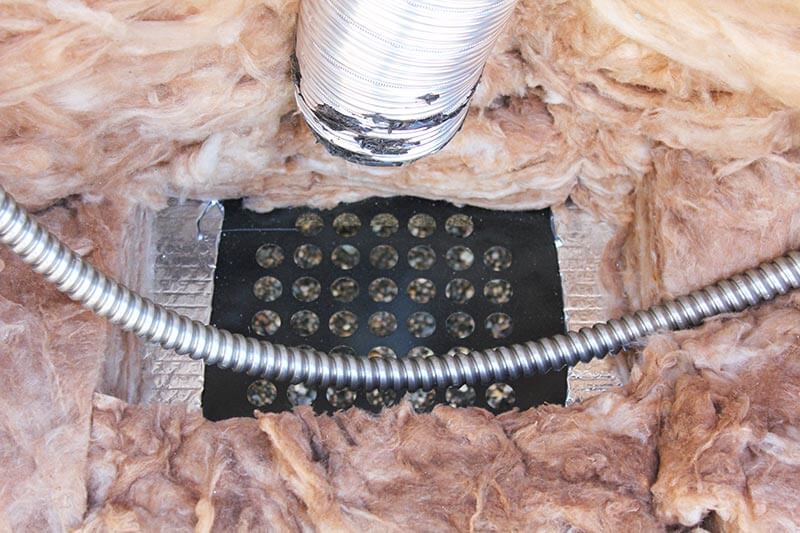

  • Fan Forced Draft

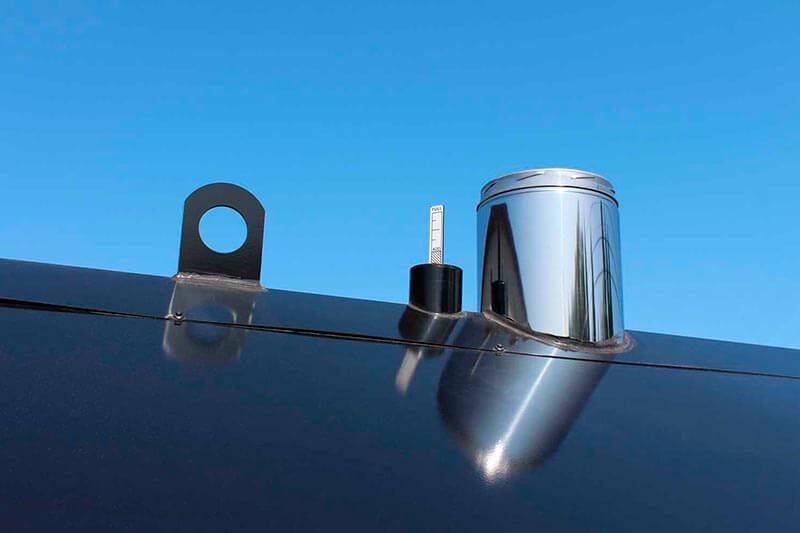

  • Class A Insulated Chimney
  • Non-Stick Door Gasket
  • Insulated - Walls R30, Roof R30
  • Water Level Indicator

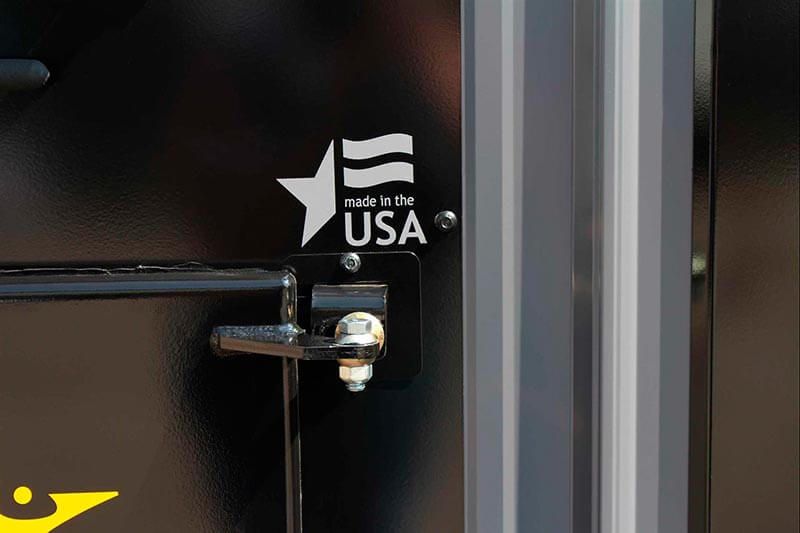

  • Safety Latch Firebox Door

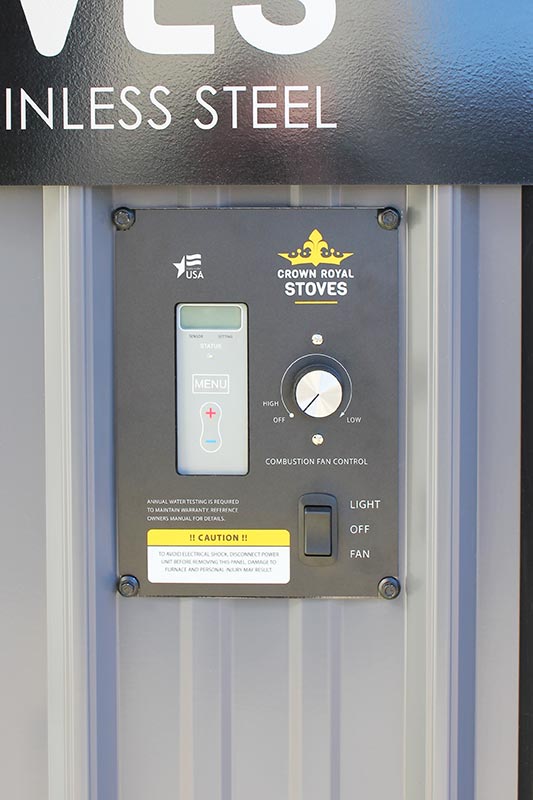

  • Digital Control Panel
  • 20 Year Limited Warranty

BENEFITS

  • No Mess in the House
  • Works with Any Existing System
  • No Carbon Monoxide Caused by Gas Fumes

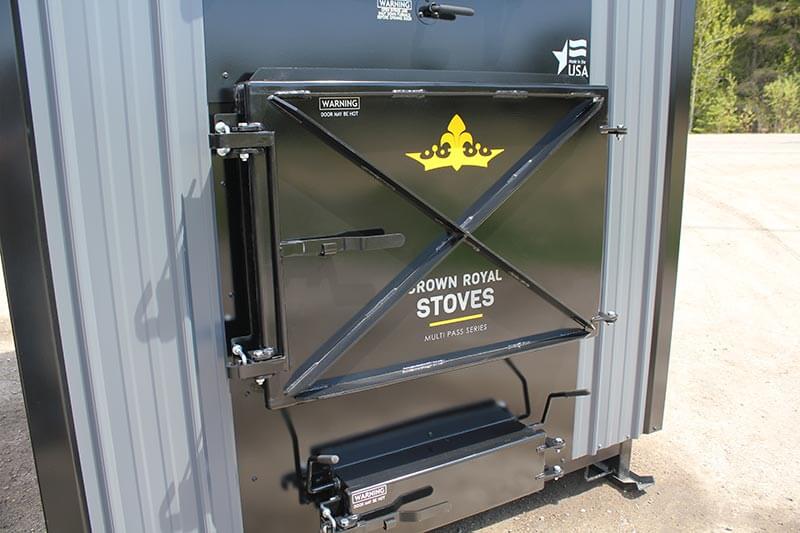

  • Large Firebox & Loading Door
  • Cost Effective Heat Source
  • Multiple 1-1/4" Supply & Return Connections

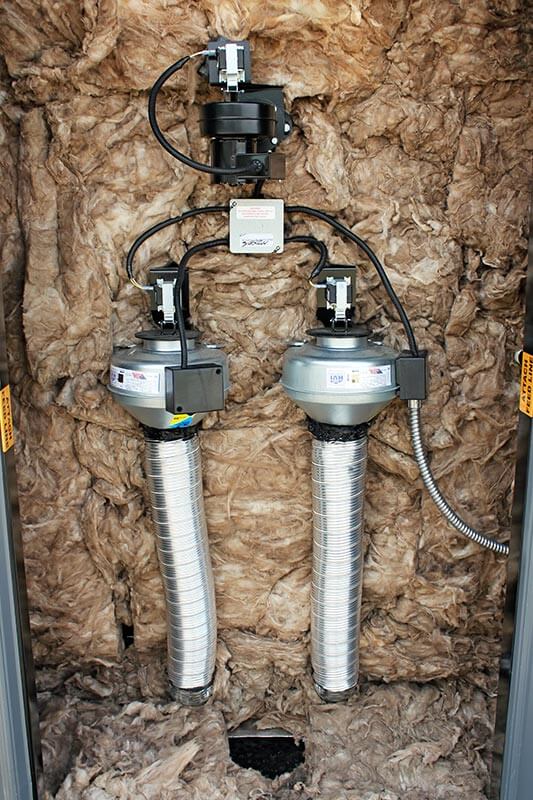

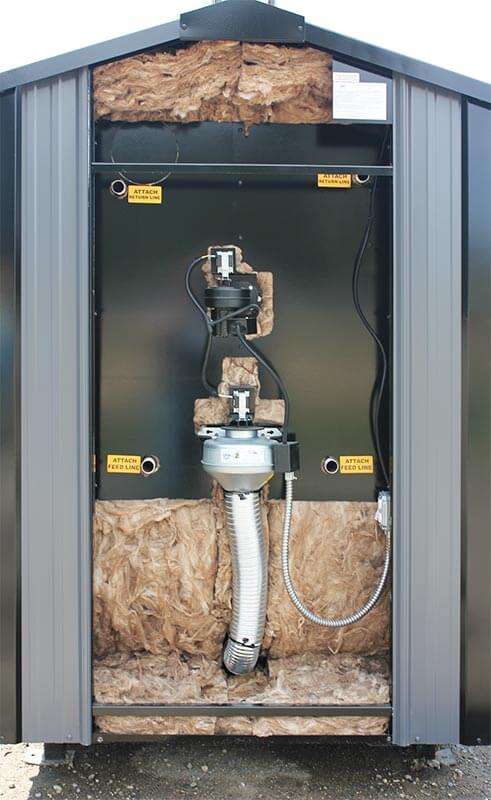

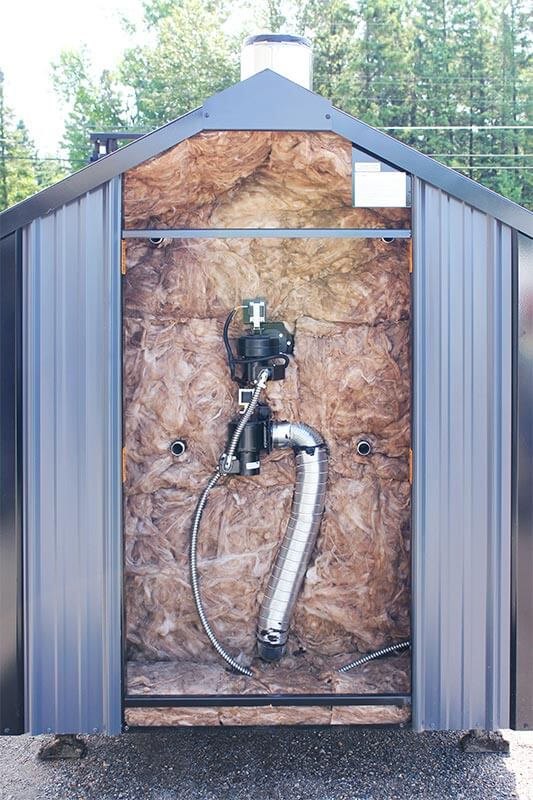

  • Easily Removable Rear Access Door to Plumbing Connections
  • Light for Night Loading

APPLICATIONS

  • Residential Homes
  • Pools/Hot Tubs
  • Domestic Hot Water
  • Radiant In-Floor Heating
  • Commercial Buildings
  • Greenhouses
  • Garages & Workshops
  • Barns & Agricultural Buildings
