BIOMASS SERIES

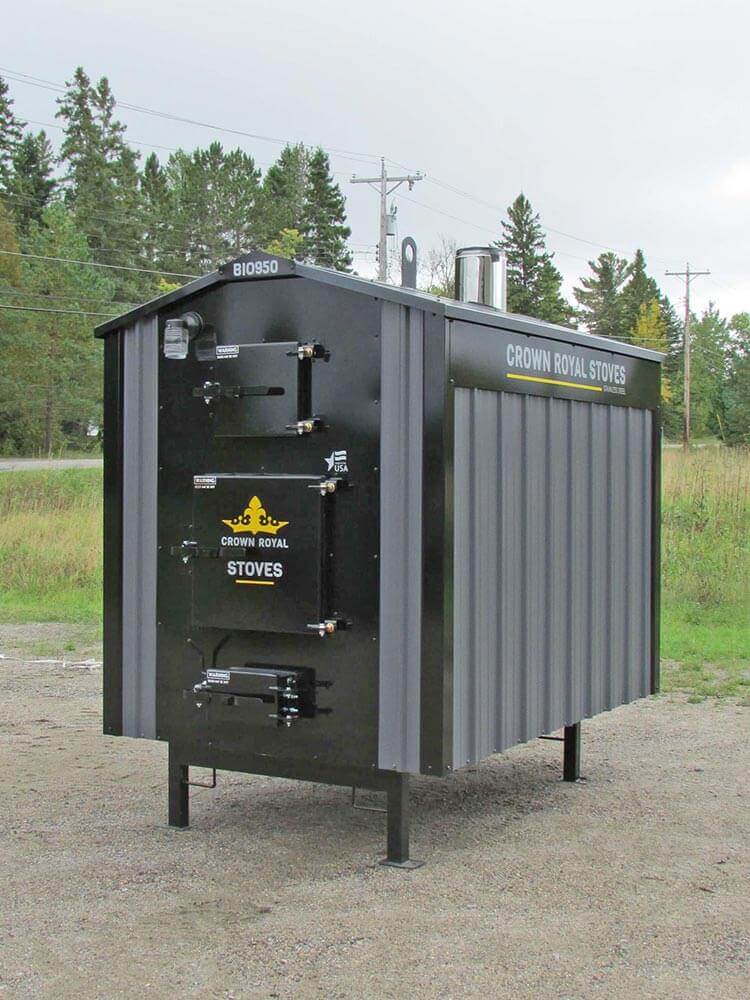

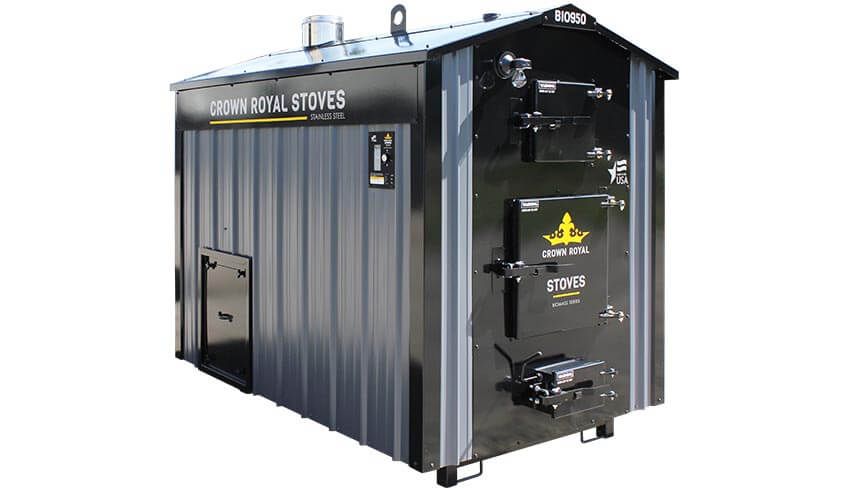

BIOMASS SERIES - COMMERCIAL CHIP BOILER

With the Crown Royal Outdoor Biomass Series, you can burn numerous types of fuel: wood chips, wood pellets, coal, silage, etc. The Biomass stove is designed with a storage bin that can be located next to your fuel storage, and is normally filled once a week. High energy efficiency and the ability to burn locally sourced renewable fuel make this stove the number one choice for many consumers.

The Biomass stove is equipped with shaker grates and an ash pan to make cleaning quick and easy. Triple pass heat exchangers and stainless steel heat transfer tubes allow the Biomass Series to produce the highest possible efficiencies. This stove is constructed out of 409 Titanium Enhanced Stainless Steel to offer the best corrosion resistance and heat transfer possible. The Biomass Series is available in one model with a heating capacity of 950,000 BTU's and the ability to turn down to 300,000 BTU's.

BIO950

Est Weight (lbs)
4000
Width
64"
Length
92" + Fuel Bin
Height
93"
Slab Dimensions
12' x 30'
Chimney Size
6"
Door Size
22"x22"
Supply Size
2 - 2"
Return Size
2 - 2"
Approx. Water Capacity
420 gal.

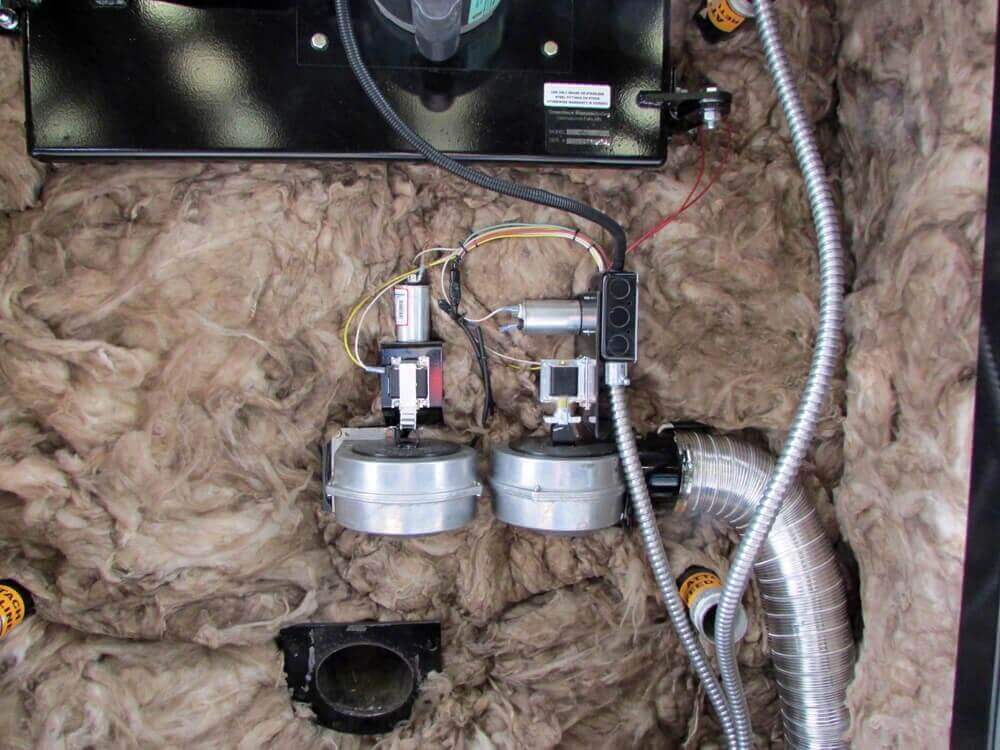

Lower Primary Combustion Blower
150 CFM
Over Fire Combustion Blower
150 CFM
Negative Pressure Exhaust Motor    3,450 RPM
Approx. BTU's
950,000
Insulation Walls
R 30
Insulation Roof
R 30
 409 Stainless Steel
Yes

FEATURES

  • 409 Titanium Enhanced Stainless Steel

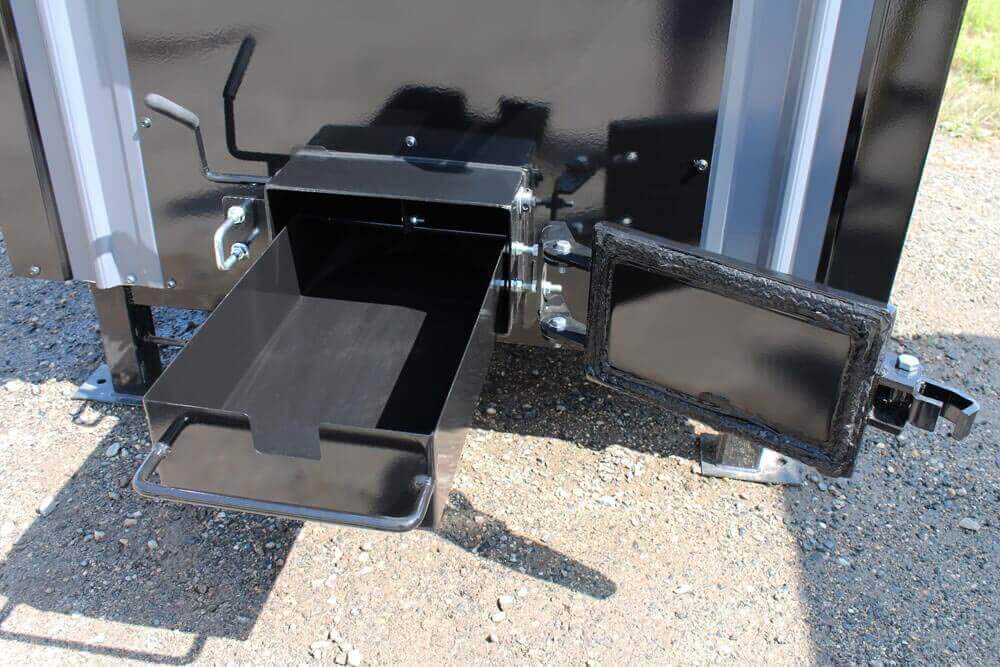

  • Shaker Grate System with Removable Ash Pan
  • Stainless Steel Heat Transfer Tubes
  • Fan Forced Draft
  • Class A Insulated Chimney
  • Non-Stick Door Gasket
  • Insulated - Walls R30, Roof R30
  • Water Level Indicator
  • Safety Latch Firebox Door

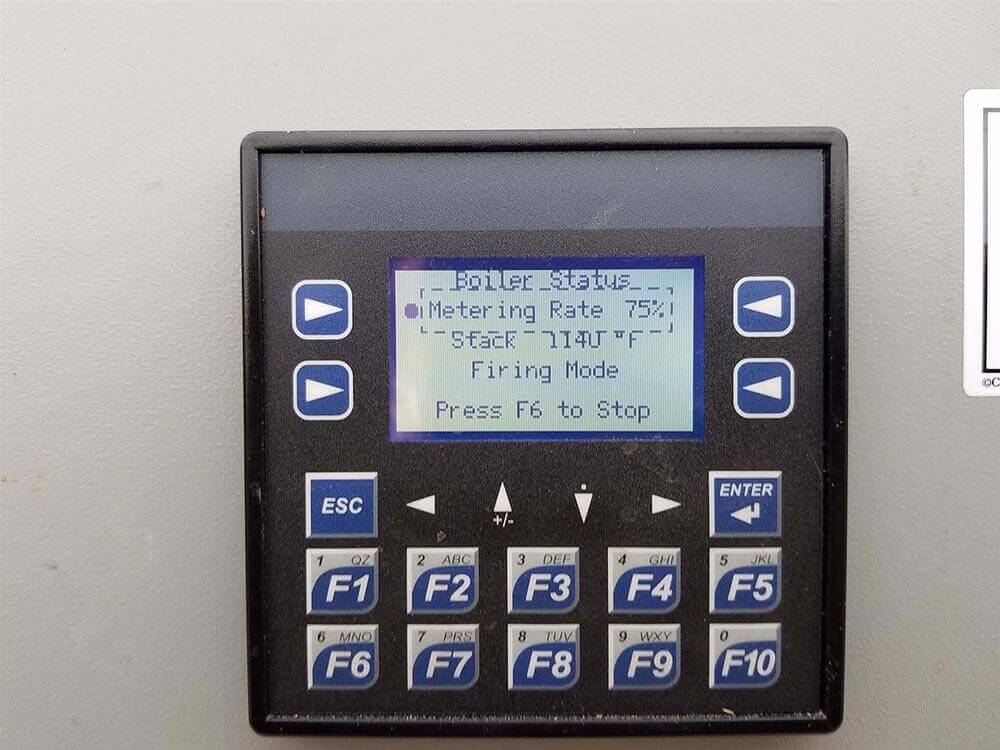

  • Digital Control Panel
  • Secondary Combustion

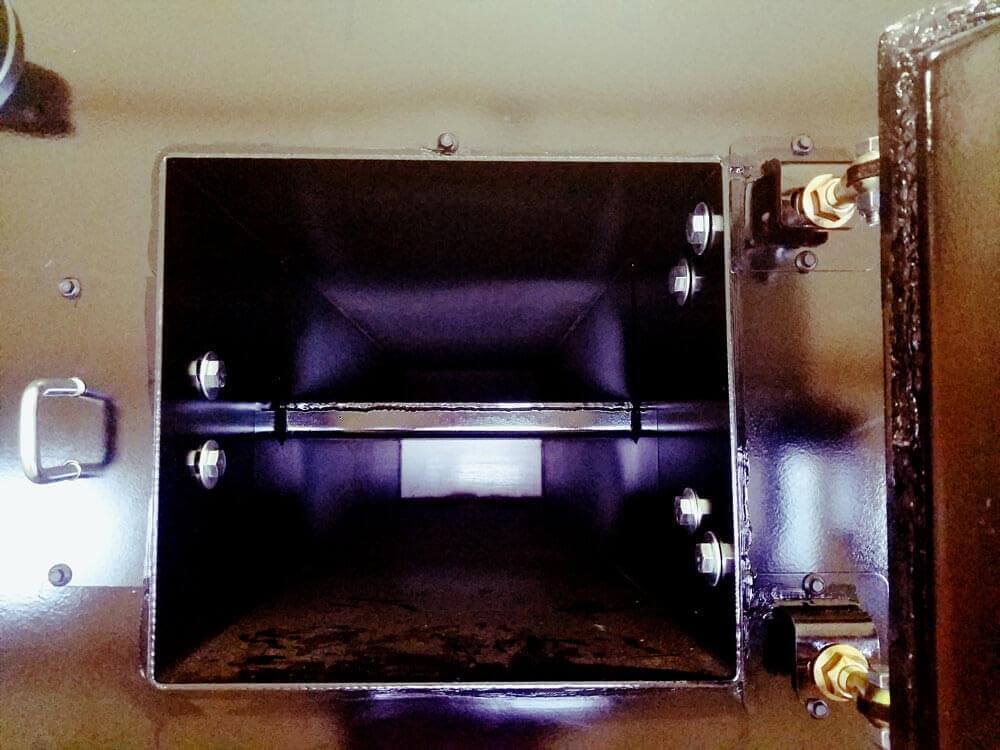

  • Triple Pass Heat Exchanger
  • 20 Year Limited Warranty

BENEFITS

  • Burns Multiple Biomass Fuels
  • Works with Any Existing System
  • No Carbon Monoxide Inside
  • Removable Ash Pan
  • Long Burn Times
  • Once a Week Loading or Longer

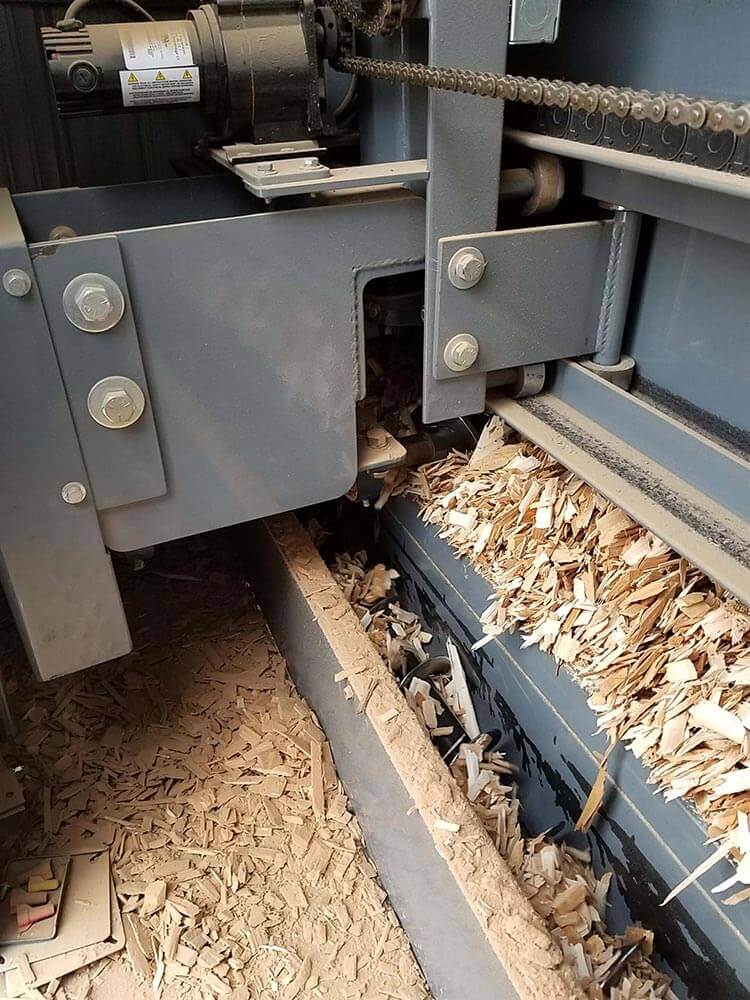

  • Automatically Fed
  • Cost Effective Heat Source for Large Buildings

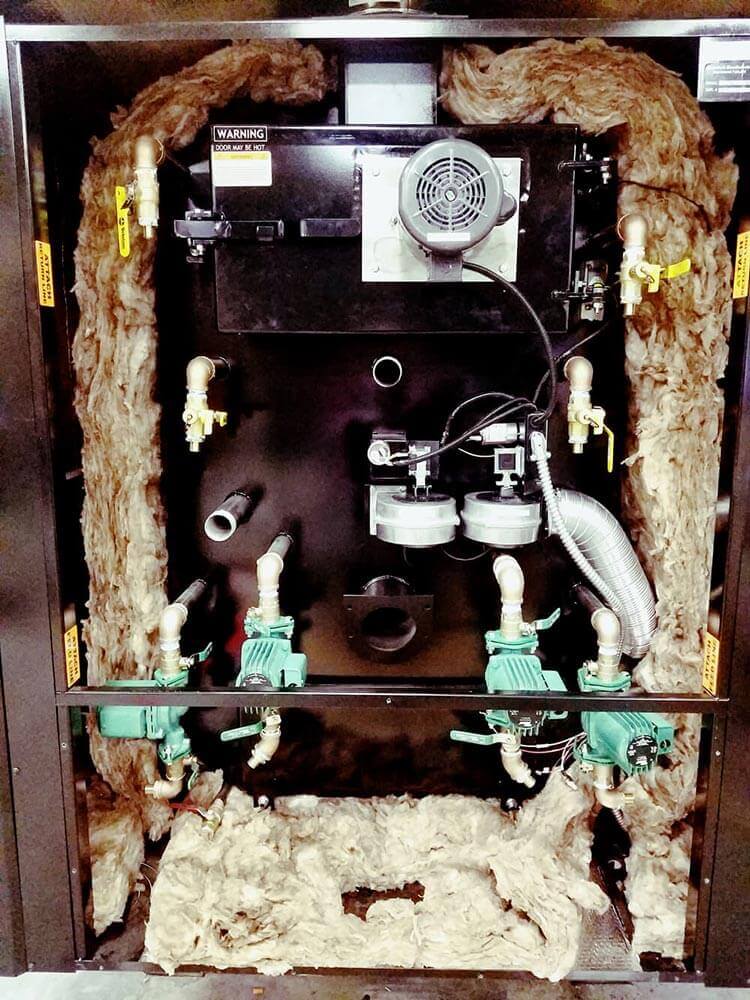

  • Multiple 2" Supply & Return Connections

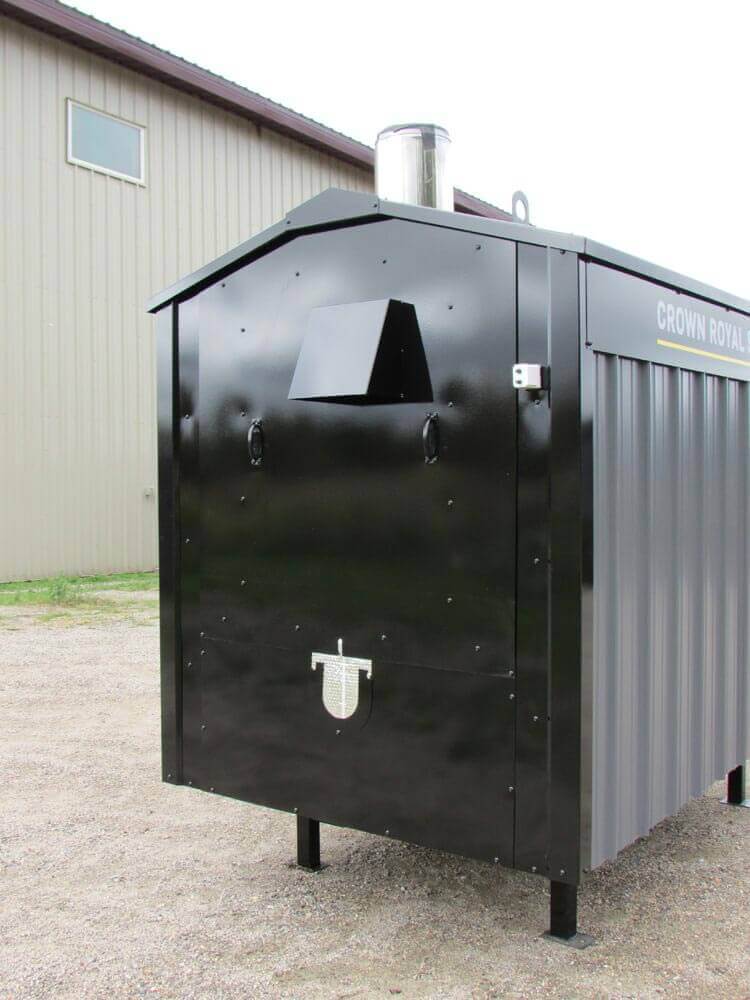

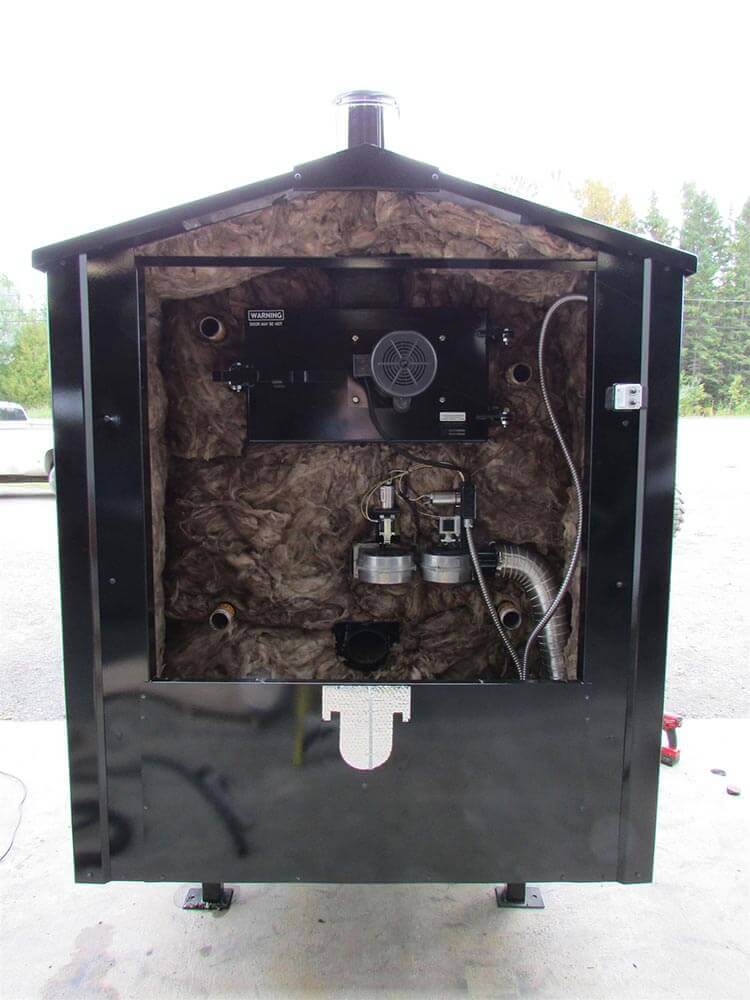

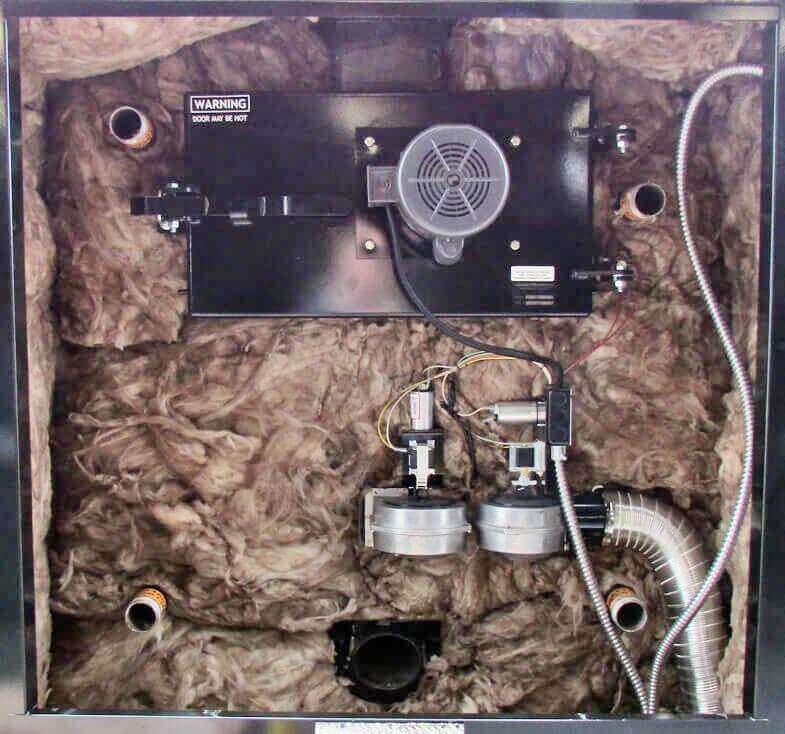

  • Easily Removable Rear Access Door to Plumbing Connections
  • Light for Night Loading

ADVANTAGES

  • Clean, Efficient & Safe
  • Low Maintenance
  • Lower Heating Costs
  • Low Emissions
  • Locally Sourced Fuels
  • Not Reliant on Foreign Fuels

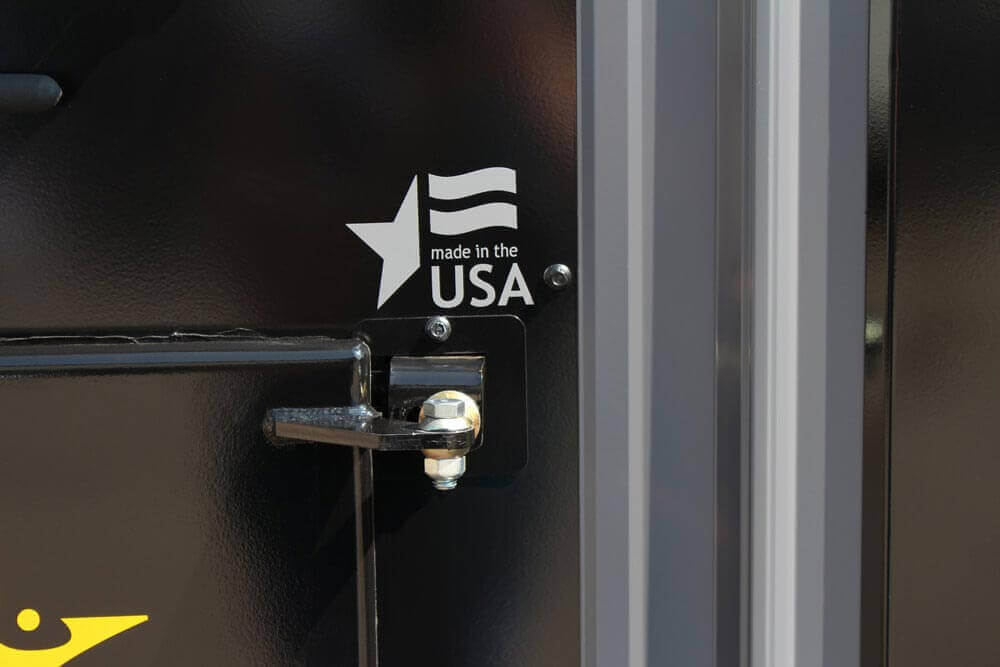

  • Made in the USA

APPLICATIONS

  • Greenhouses
  • Commercial Buildings
  • Warehouses
  • Barns & Agricultural Buildings
  • Radiant In-Floor Heating
  • Large Garages & Workshops
  • Pools / Hot Tubs
  • Domestic Hot Water
